Description

Key Features
Availability
Brochure
Year
2021
Make
LS Tractor
Model

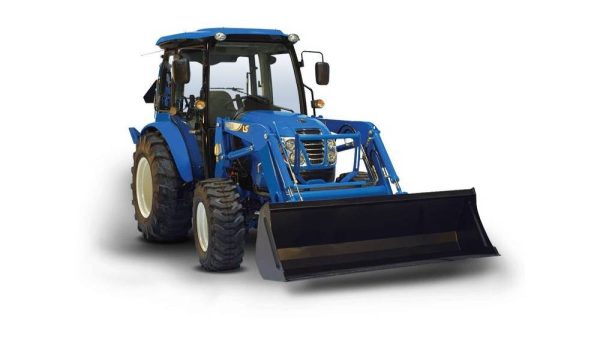

XR4140C-40HP
Product Features
Overview
Description
Features
Roomy Cab With Ac/heat: Comes standard with side mirrors, front washer/wiper, interior lighting, air conditioning and heat, flat platform and rubber mat.
4WD (Front Wheel Mechanical Assist): Go from 2WD to a 4WD with a simple move of a lever.
Independent PTO: Easiest PTO to operate that can be turned on or off with a switch.
Standard 16×16 Synchro Shuttle: Change gears without having to stop. 16 forward / 16 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
Side Mounted Main Gear Lever: Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
Standard 2 Sets Of Remote Valves With Detent: Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Extendable Lower Links: Allows easier attachment of a wide variety of Category 1 implements with a 2,755 lb lift capacity.
Standard Tilt & Power Steering: Makes turning easier, improves control and reduces fatigue.
Fender Mounted Joystick For Front End Loader: Easily accessible for maximum comfort and convenience.
Your Choice Of Tires At No Additional Cost*: Choose Ag, Industrial or Turf tires are no additional cost. *Subject to dealer inventory.
3-Point Hitch: Category 1 with a hitch lift capacity of 2,755 lbs. allows usage of wide variety of implements.
Standard Hydraulic Position And Draft Control: Easily accessible for maximum comfort and convenience.
Standard Rear Work Light: Adjustable light to improve visibility where you need it.
Standard Draw Bar: Increases the usefulness of the tractor without the additional optional cost.
7 Pin Connector: Provides electrical Power for implements when needed.
Large Fuel Tank: Provides long operation times between fill-ups.
LS CRDI Tier 4 Engine: Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather. Includes engine speed cruise control.
Easy Open One-Piece Hood: Provides accessibility for easy maintenance.
Modern Ergonomic Design: Ergonomically designed for comfort.
Deluxe Adjustable Seat With Arm Rests And Retractable Seat Belt: Keeps you in a comfortable and safe position for maximum control.
Engine
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model (Tier 4): L3C19-T
Engine HP (Gross): 40
PTO HP: 34
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal): 12.4 (CABIN) / 10.6 (ROPS)
Alternator(V-A): 12 – 70
Drive Train
Transmission: Synchro shuttle or HST
Speeds: F16 x R16 (GEAR) or 3 Ranges (HST)
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Mid PTO(Option): 2,000
Rear, rpm: 540
Hydraulic System
Control System: Position/Draft
Main Pump (gpm): 8.2
Steering pump (gpm): 4.1 (GEAR) / 5.5 (HST)
Total flow (gpm): 12.3 (GEAR) / 13.7 (HST)
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb.): 2,755
Remote Valves: 2 pairs (Front), 2 / 3 pairs (Rear)
Dimensions
Overall length, Bumper to link (in.): 133
Wheelbase (in.): 73.2
Overall width with tires, (in.): 62.5
Ht to top of rops, in. (in.): 90
Tire Size
Ag Front/Rear: 9.5 – 16 / 13.6 – 24
Industrial Front/Rear: 12 – 16.5 / 17.5L – 24
Turf Front/Rear: 28 x 8.5 – 15 / 41 x 14 – 20
Weight
Total weight without ballast (lb.): 4,380
Options
Mid PTO
Beacon lamp kit
Deluxe stereo system with CD Player, USB
Room mirror
Rear wiper
Sun screen
Available Attachments
LL4104 – Front End Loader
LL4106 – Front End Loader
LB2105 – Backhoe
LB3104 Backhoe
LM4184 Finishing Mower
LW3174 A Snowblower
LW4164 Snowblower
LR3172 Rotary Broom
Product Specs
Engine
Engine Manufacturer L3C19-T
Engine Type Vertical Water-Cooled 4Cycle Diesel Engine
Horsepower 40 hp
PTO HP 34 hp
Rated RPM 2,600 rpm
Specifications
Wheelbase 73.2 in.
Weight 4,380 lb.
Tire Size 9.5 – 16 / 13.6 – 24
General
Fuel Capacity 12.4 (CABIN) / 10.6 (ROPS) gal.
Transmission Synchro shuttle or HST
Brakes Wet, Multi-Disc
Hydraulics 12.3 (GEAR) / 13.7 (HST) gpm
