Description

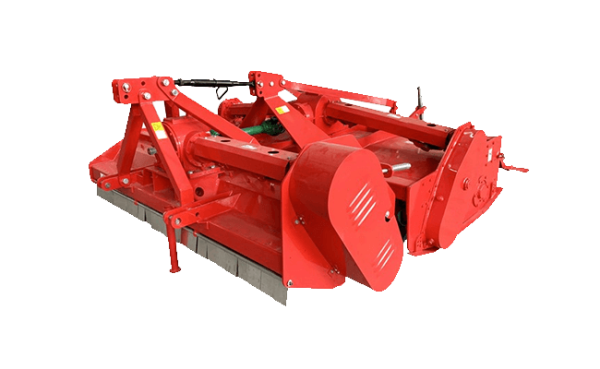

The agricultural compound land cultivator 1ZJL-230, with 160-200 hp matching power, realizes efficient and stable land cultivation. The dimension is 2550×2660×1230 mm, the working width is 2300 mm, and it has strong adaptability to meet different plowing needs.

parameters
Specifications Unit 1ZJL-230
Matching power hp 160～200
Dimension mm 2550×2660×1230
Weight kg With ballast roller With drag plate
mm 1950 1900
Working width mm 2300
Max. plowing depth mm 120～180
No. of rotary plow knives of one axes pcs cutlass88、straight edge of a knife44
No. of rotary plow knives of two axes pcs 68（standard）/62（optional）
No. of rotary plow knives of three axes pcs 68（standard）/62（optional）
Matching power output shaft speed r/min separate use 540/720
Compound use 720/1000
Features
Agricultural land cultivator 1ZJL-230, with compound operation capability, completes multiple processes at one time, improves efficiency and reduces fuel consumption. Rotary tillage depth is adjustable, and the through-shaft side drive design solves the problems of leakage and unevenness after plowing. Powerful blade configuration ensures land handling capacity and adapts to a wide range of plowing conditions.
Convenient disassembly and combination, easy to operate;
After compounding one time down to the ground can achieve three times operation effect, high working efficiency and low fuel consumption;
Rotary plowing depth is conveniently adjustable;
Adopting through-axle side transmission, solving the problems of leakage plowing, unevenness after plowing, etc.
