Description

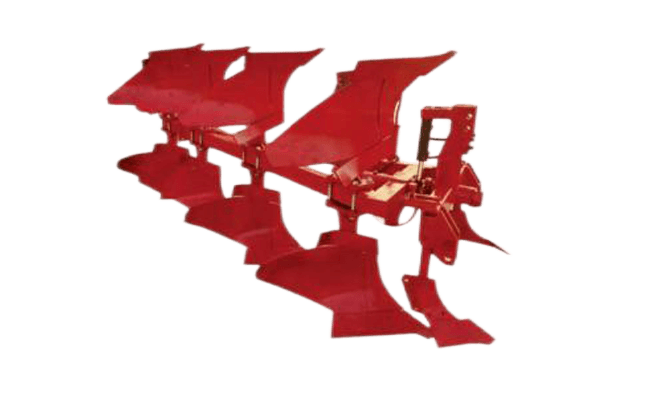

Hydraulic reversible plow 1LF series is a full-mounted plough matching with four-wheeled tractor, suitable for sandy soil and dry land ripe land plowing and turning operation, can carry out shuttle bidirectional operation, the surface of the ground after plowing is smooth, with less idling stroke at the ground head and high operating efficiency.

parameters
Specifications Unit 1LF-225 1LF-325 1LF-425 1LF-525 1LF-330 1LF-430 1LF-530 1LF-335 1LF-435 1LF-535
Width of cut mm 500 750 1000 1250 900 1200 1500 1050 1400 1750
Depth of cut mm 220-270 250-300 300-350
No. of plough blades 4 6 8 10 6 8 10 6 8 10
Weight kg 330 400 530 650 680 780 880 700 840 960
Tractor power hp 25-35 35-55 60-80 80-90 50-70 60-80 90-120 70-80 80-100 100-12 0
Mounted cat Three point mounted Cat II
Matching Check
The hydraulic reversibleplow product has reasonable structure, strong rigidity, high quality material and beautiful appearance.
With two-way reversiblefunction, saving time and oil, high efficiency and economy.
The hydraulic control system makes it more convenient to control the plow and improve the operation efficiency.
Configuration of small compound plow, can cut the field surface vegetation, in order to facilitate the straw and weeds deep cover rot fertilizer field.
