Description

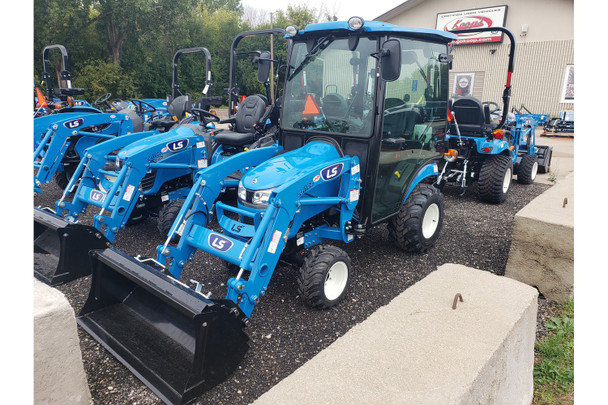

MT125 – SPECS

dumbbell icon LOADER LIFT CAPACITY 1,007 lbs.

tractor icon 3-POINT LIFT 966 lbs.

lightning icon ENGINE HP 24.7 HP

tractor wheel icon PTO HP 17.2 HP

ENGINE

Type: 3-cylinder, Indirect-injection, Water-cooled

Model (Tier 4 ): Yanmar 3TNV80F

Engine HP (Gross): 24.7

PTO HP: 17.2

Rated Speed (RPM): 3,000

Displacement (cu in.): 77.3

Fuel Tank Capacity (gal): 6.6

Alternator (V-A): 12V – 40

DRIVE TRAIN

Transmission: Hydrostatic Drive

No. of Speeds: 2 Ranges

Brakes: Wet, Multi-Disc

Steering: Hydrostatic Power Steering

PTO

Type: Independent

Mid PTO: Standard (2500 rpm)

Rear PTO: Standard (540 rpm)

HYDRAULIC SYSTEM

Implement pump (gpm): 4.6

Steering pump (gpm): 2.1

Total flow (gpm): 6.7

Category, 3 pt hitch: CAT 1

Hitch lift Capacity (lbs.) (Hitch End) 970 (728 @ 24”)

Lift control type: Position

DIMENSION

Overall length (Bumper to link, in.): 97

Wheelbase (in.): 56

Min. overall width with IND tires (in.): 47

Height to top of ROPS (in.): 87

TIRE SIZE

Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12

Versa Turf Front/Rear: 18×18.5 – 10/26 x 12.0 – 12

WEIGHT

Total weight without ballast (lbs.): 1,444
